gcl::hms_directed_graph Class Reference

Class for random directed graphs embedded in a hidden metric space. More...

#include <hms_directed_graph.hpp>

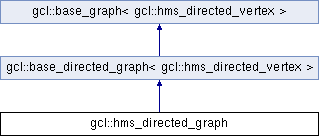

Inheritance diagram for gcl::hms_directed_graph:

Public Member Functions
	hms_directed_graph ()
	Constructor.
	~hms_directed_graph ()
	Destructor.
double	get_nb_dimensions ()
	Returns the number of dimensions.
void	set_metric_space_positions (unsigned int _nb_vertices, std::string _geometry, double _delta, std::mt19937 &_engine)
	Sets the metric space position.
void	set_hidden_variables (std::vector< std::vector< double > > _sequence_hidden_variables)
	Sets the hidden variables of vertices.
void	create_edges (std::string _prob_connection_type, std::vector< double > _prob_connection_param, std::mt19937 &_engine)
	Creates the edges of the graph.
void	survey_hidden_variables ()
	Computes the quantities related to the degrees distribution.
void	write_graph_properties (std::string _name)
	Exports the graph's properties.
void	write_vertices_properties (std::string _name)
	Exports the vertices' properties.
void	clear ()
	Reinitializes the graph.
unsigned int	get_nb_reciprocal_edges ()
	Returns the number of reciprocal edges.
double	get_reciprocity ()
	Returns the reciprocity.
unsigned int	get_nb_undirected_projection_triangles ()
	Returns the number of triangles in the graph (regardless of the direction of the edges).
unsigned int	get_nb_undirected_projection_wedges ()
	Returns the number of wegdes in the graph (regardless of the direction of the edges).
double	get_global_undirected_projection_clustering_coefficient ()
	Returns the global clustering coefficient (3 x [number of triangles] / [number of wedges], regardless of the direction of the edges).
double	get_avg_local_undirected_projection_clustering_coefficient ()
	Returns the average value of the local clustering coefficients.
unsigned int	get_min_in_degree ()
	Returns the minimal in degree found in the graph.
unsigned int	get_max_in_degree ()
	Returns the maximal in degree found in the graph.
double	get_avg_in_degree ()
	Returns the average in degree found in the graph.
unsigned int	get_min_out_degree ()
	Returns the minimal out degree found in the graph.
unsigned int	get_max_out_degree ()
	Returns the maximal out degree found in the graph.
double	get_avg_out_degree ()
	Returns the average out degree found in the graph.
void	survey_triangles ()
	Creates a list of the triangles in the graph (regardless of the direction of the edges).
void	write_edgelist (std::string _name)
	Exports the directed graph to an edgelist.
void	compute_nb_reciprocal_edges ()
	Computes the number of reciprocal edges.
void	compute_undirected_projection_clustering_coefficients ()
	Computes the clustering coefficients.
std::string	get_type_of_graph ()
	Returns the type of graph.
unsigned int	get_nb_vertices ()
	Returns the number of vertices.
unsigned int	get_nb_edges ()
	Returns the number of edges.
unsigned int	get_nb_zerodegree_vertices ()
	Returns the number of vertices with no edge.
void	survey_degrees_distribution ()
	Computes the quantities related to the degrees distribution.
gcl::hms_directed_vertex *	operator() (unsigned int _id)
	Returns a VertexType object corresponding to the _id-th vertex.

Protected Member Functions
void	base_directed_graph_clear ()
	Reinitializes the graph (inherited variables).
void	set_type_of_graph (std::string _type_of_graph)
	Sets the type of graph.
void	set_nb_vertices (unsigned int _value)
	Sets the number of vertices.
void	set_nb_edges (unsigned int _value)
	Sets the number of edges.
void	set_nb_of_types_of_degrees (unsigned int _value)
	Sets the number of types of degrees.
unsigned int	get_base_graph_min_degrees (unsigned int _type)
	Returns the minimal degree found in the graph.
unsigned int	get_base_graph_max_degrees (unsigned int _type)
	Returns the maximal degree found in the graph.
double	get_base_graph_avg_degrees (unsigned int _type)
	Returns the average degree found in the graph.
void	base_graph_clear ()
	Reinitializes the graph (inherited variables).

Protected Attributes
const unsigned int	id_out_degree
	Index corresponding to the out-degree in degree-related vectors.
const unsigned int	id_in_degree
	Index corresponding to the in-degree in degree-related vectors.
bool	have_the_degree_distributions_been_surveyed

Detailed Description

Class for random directed graphs embedded in a hidden metric space.

This class provides the members attributes and functions for random directed graph objects that are embedded in a hidden metric space.

Author

Antoine Allard (antoineallard.info)

Date

Jan. 2016

---

The documentation for this class was generated from the following file:

• src/hms_directed_graph.hpp
